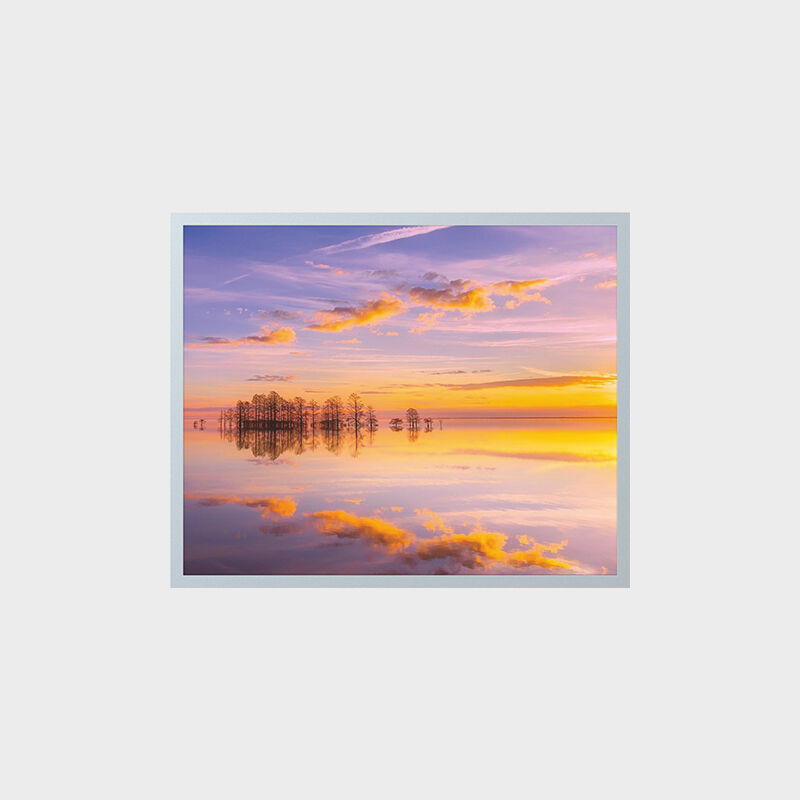

19 Inch High Brightness TFT LCD Display 1280*1024 Resolution Industrial Area
Ürün ayrıntıları
| İsim | 19 İnç TFT LCD Ekran | Panel Boyutu | 19" |
|---|---|---|---|
| Çözünürlük | 1280*1024 | Parlaklık | 800 (Tip.) |
| En Boy Oranı | 5:4 | Aktif Alan | 374,8*303 mm |
| Anahat Boyutu | 396*324*13,38 mm | Arayüz | LVDS (2 kanal, 8 bit) |
| Vurgulamak | 19 inch high brightness TFT LCD,industrial LCD display 1280x1024 resolution,high brightness TFT display with warranty |
||
Ürün Açıklaması
19 Inch High Brightness TFT LCD Display 1280*1024 Resolution Industrial Area
Product Advantages
- Brightness customization 700-5000 cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime: 50K hours (Typical), up to 80K hours
- Aluminium backlight structure with excellent heat dissipation
- Wide temperature range: -30°C to 80°C
- High shock resistance and stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
LCMA-RX0190GB03-C080
| Brand | Rogin |
| Series | High Brightness LCD Display |
| Panel Size | 19 inch |
| Model | LCMA-RX0190GB03-C080 |
| Brightness | 800 nits (Support Customization) |
| Resolution | 1280 × 1024 |
| Active Area | 374.8 × 303 mm |
| Overall Size | 396 × 324 × 13.38 mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 5:4 |
| Touch Panel | Without |
| Operating Temperature | -20°C to 70°C |
