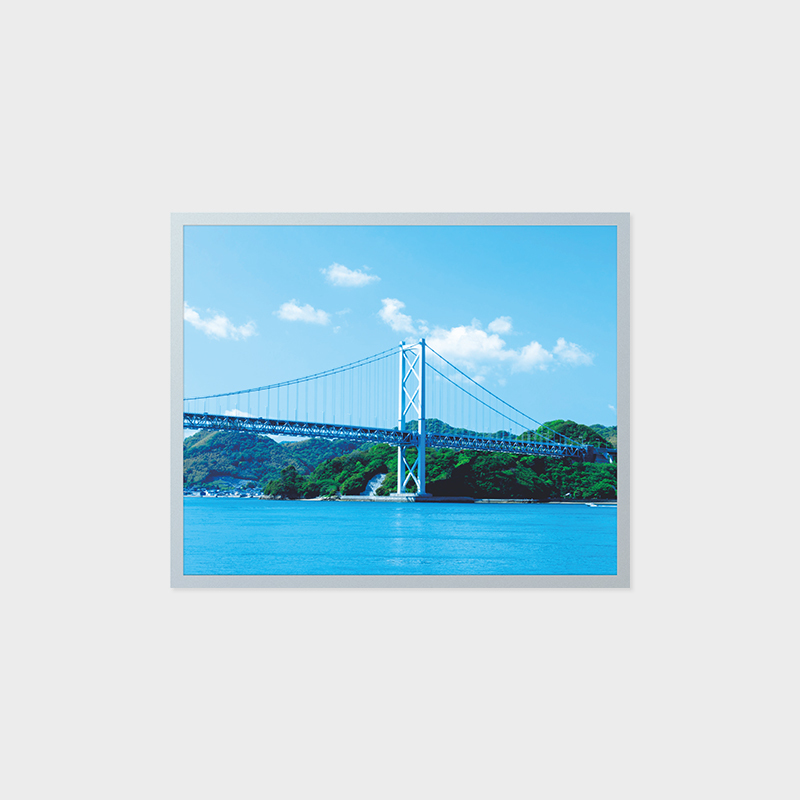

19 Inch TFT LCD Display 1280*1024 Resolution With Wide Temperature Industrial Area
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| İsim | 19 inçlik LCD ekran | Panel boyutu | 19 " |
|---|---|---|---|
| Çözünürlük | 1280*1024 | Parlaklık | 800 (Tip.) |
| en boy oranı | 5:4 | Aktif alan | 374.8*303mm |
| Anahat boyutu | 396*324*13.38mm | Arayüz | LVDS (2 kanal, 8 bit) |
| Vurgulamak | 19 inch TFT LCD display,1280x1024 resolution LCD screen,wide temperature industrial LCD display |
||
Ürün Açıklaması
19 Inch TFT LCD Display 1280×1024 Resolution With Wide Temperature Industrial Area
Product Advantages
- Brightness customization 700-5000 cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime: 50K hours (Typical), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range: -30°C to 80°C
- High shock resistance and high stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
| Model | LCMA-RX0190GB03-C080 |
| Brand | Rogin |
| Series | High Brightness LCD Display |
| Panel Size | 19 inch |
| Brightness | 800 nits |
| Resolution | 1280 × 1024 |
| Active Area | 374.8 × 303 mm |
| Overall Size | 396 × 324 × 13.38 mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 5:4 |
| Touch Panel | Without |
| Operating Temperature | -20°C to 70°C |
