15 Inch TFT LCD Display With 1024*768 Resolution Support -30~80°C Solution
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| İsim | 15 inçlik LCD ekran | Panel Boyutu | 15" |
|---|---|---|---|
| Çözünürlük | 1024*768 | Parlaklık | 1000 (tip.) |
| en boy oranı | 4:3 | Aktif alan | 304.128*228.096mm |
| Anahat boyutu | 326,5*253,5*9,7 mm | Arayüz | LVDS (1 kanal, 8 bit) |
| Vurgulamak | 15 inch TFT LCD display,1024x768 resolution LCD screen,high brightness LCD display |
||
Ürün Açıklaması

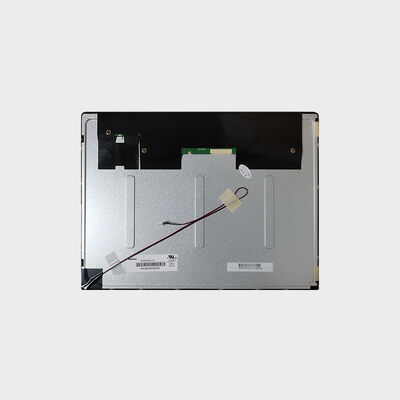

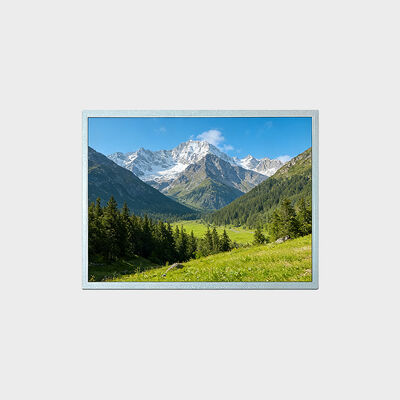

15 Inch TFT LCD Display With 1024*768 Resolution Support -30~80°C Solution
Product Advantages
- Brightness customization 700-5000 cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime: 50K hours (Typical), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range: -30°C to 80°C
- High shock resistance and high stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Technical Specifications
| Model | LCMA-RX0150GI02-C100 |
| Brand | Rogin |
| Series | High Brightness LCD Display |
| Panel Size | 15 inch |
| Brightness | 1000 nits |
| Power Consumption | 16.6 W |
| Resolution | 1024 × 768 |
| Active Area | 304.128 × 228.096 mm |
| Overall Size | 326.5 × 253.5 × 9.6 mm |
| Viewing Angle | 88/88/88/88 |
| Interface Definition | LVDS (1 ch, 6/8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 2500:1 |
| Aspect Ratio | 4:3 |
| Touch Panel | Without |
| Operating Temperature | -30°C to 80°C |
