12.1 inch TFT LCD Display With Android System Outdoor Machine
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| Panel boyutu | 12.1 | Çözünürlük | 1280*800 |
|---|---|---|---|
| Parlaklık | 1500 (Tip.) | en boy oranı | 16:9 |
| Aktif alan | 261,12*163,2 mm | Anahat boyutu | 278*184*11mm |
| Vurgulamak | 12.1 inch TFT LCD display,Android system outdoor LCD,high brightness TFT display |
||
Ürün Açıklaması

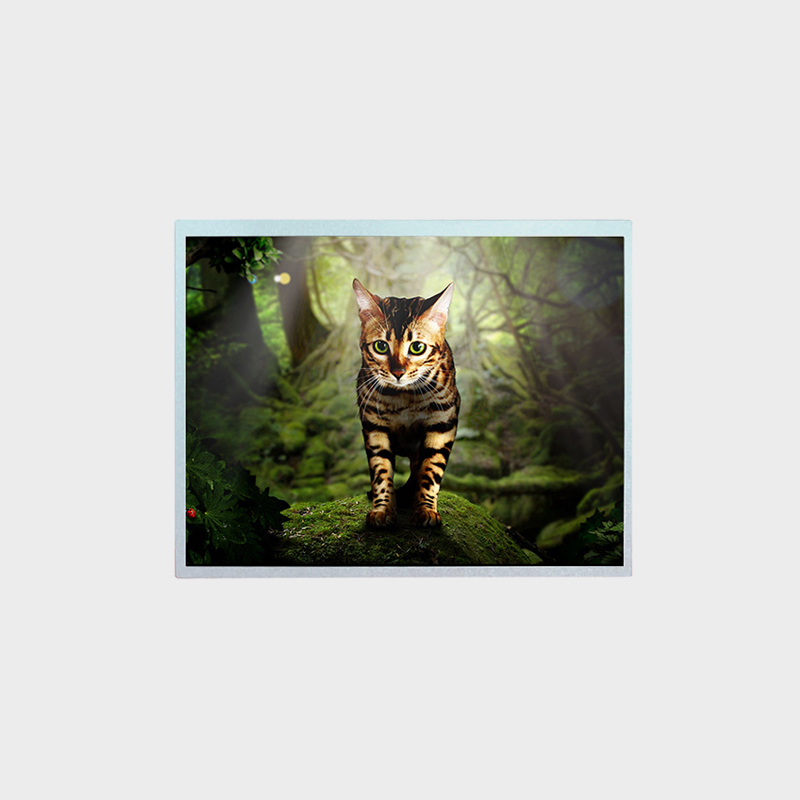

12.1 inch TFT LCD Display With Android System Outdoor Machine
High Brightness LCD Product Feature
- Brightness customization 700-5000cd/m².
- Outdoor sunlight readable.
- Low power consumption.
- High uniformity up to 85%.
- Aluminium backlight structure with good heat dissipation.
- Wide temperature range up to -30°C-80°C.
- High shock resistance and high stability.
High Brightness LCD Product Application
- Bus Stop Station
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising
- Attractions Information Inquiry Machine
- Community Information Board
High Brightness LCD Data sheet
| Brand | Rogin |
|---|---|
| Series | High Brightness LCD Display |
| Panel Size (inch) | 12.1 |
| Model | LCMA-RX0121GI01-C150 |
| Brightness | 1500 |
| Resolution | 1280*800 |
| Active Area | 261.12*163.2 |
| Overall Size | 278*184*11 |
| Viewing Angle | 88/88/88/88 |
| Interface Definition | LVDS (1 ch, 6/8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -20-70℃ |
