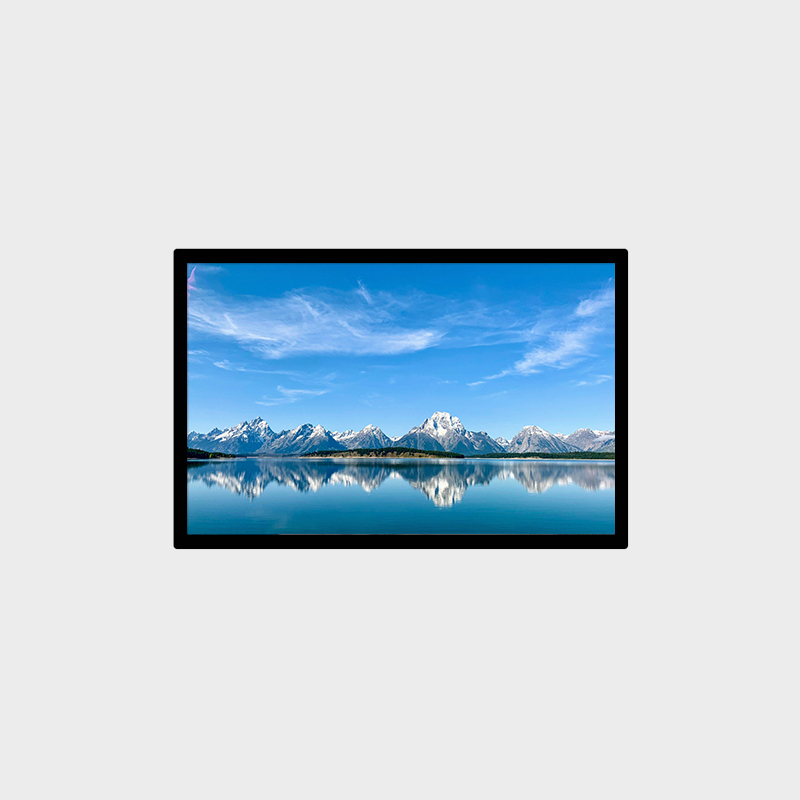

10.1 inch TFT LCD Display Support Smart Home Control Application

Menşe yeri Shenzhen
Marka adı ROGIN
Model numarası LCMA-RX0101GI02-C120
Min sipariş miktarı 5
Fiyat Price is negotiable.
Ambalaj bilgileri Kartonlar veya ahşap kasalar
Teslim süresi 4-6 HAFTA
Ödeme koşulları T/T,L/C
Yetenek temini SPOT Yeterliliği

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
Panel boyutu 10,1" Çözünürlük 1280*800
Parlaklık 1200 (Tip.) en boy oranı 16:9
Aktif alan 216,96*135,6 mm Anahat boyutu 230,7*152,55*7 mm
Vurgulamak

10.1 inch TFT LCD display

,

smart home control LCD screen

,

high brightness TFT display

Mesaj bırakın
Ürün Açıklaması
10.1 inch TFT LCD Display Support Smart Home Control Application
Product Features
  • Brightness customization 700-5000cd/m²
  • Outdoor sunlight readable
  • Low power consumption
  • High uniformity up to 85%
  • Aluminium backlight structure with good heat dissipation
  • Wide temperature range up to -30°C-80°C
  • High shock resistance and high stability
Product Applications
  • Bus Stop Station
  • Intelligent Charging Pile
  • Outdoor Electronic News Reading Board
  • Intelligent Express Cabinet
  • Vending Machine
  • Commercial Advertising
  • Attractions Information Inquiry Machine
  • Community Information Board
10.1 inch TFT LCD Display Support Smart Home Control Application 0 10.1 inch TFT LCD Display Support Smart Home Control Application 1 10.1 inch TFT LCD Display Support Smart Home Control Application 2 10.1 inch TFT LCD Display Support Smart Home Control Application 3
Technical Specifications
Model LCMA-RX0101GI02-C120
Brand Rogin
Series High Brightness LCD Display
Panel Size (inch) 10.1
Brightness 1200
Resolution 1280*800
Active Area 216.96*135.6
Overall Size 230.7*152.55*7
Viewing Angle 89/89/89/89
Interface Definition LVDS (2 ch, 8-bit)
Backlight Type WLED
Contrast Ratio 800:1
Aspect Ratio 16:9
Touch Panel Without
Operating Temperature -20~70℃
