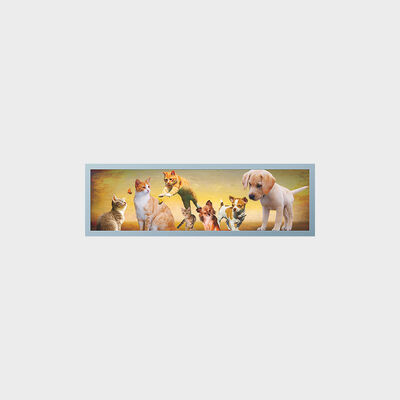

28.6 Inch Bar Type TFT Display Module Support Customized Advertising Machine
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| İsim | Çubuk Tip LCD | Panel Boyutu | 28,6" |
|---|---|---|---|
| Çözünürlük | 1920*540 | Parlaklık | 500 (tip.) |
| Çalışma sıcaklığı. | 0 ~ 50 ℃ | Aktif alan | 698,4*196,43 mm |
| Anahat boyutu | 732*231.6*19.4mm | Arayüz | LVDS (2 kanal, 8 bit) |
| Vurgulamak | 28.6 inch bar type LCD display,customizable bar type TFT display,advertising machine TFT display module |
||
Ürün Açıklaması
28.6 Inch Bar Type TFT Display Module Support Customized Advertising Machine
Product Advantage
- 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting)
- Advanced cutting technology to ensure the yield and precision
- High reliability with same features as original panel
- High Anti-vibration
- Brightness can be customized (500-2500nit)
- Long life time 50K hours (Typ), up to 80K hours
Product Application
- Commercial signage: Advertising and Price Shelves
- Public transportation: Bill board for Bus/Metro and light rail
- Guidance board, Lift advertising board
- Financial services: Bank call notice board
- Name card: Bus Stop/Station
- Advertising board on taxi/bus/subway and so on
Specifications
LCMA-RX0286TA01-C050
| Brand | Rogin |
|---|---|
| Series | Bar Type LCD Display |
| Panel Size | 28.6 inch |
| Model | LCMA-RX0286TA01-C050 |
| Brightness | 500 |
| Resolution | 1920*540 |
| Active Area | 698.4*196.43mm |
| Overall Size | 732*231.6*19.4mm |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 4000:1 |
| Touch Panel | Without |
| Operating Temperature | 0~50 ℃ |
