15 Inch Bar Display With 1028*204 Resolution LVDS Interface 700nits Brightness
Ücretsiz numuneler ve kuponlar için bana ulaşın.
Naber:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.
xÜrün ayrıntıları
| İsim | Çubuk LCD Ekran | Panel boyutu | 15" |
|---|---|---|---|
| Çözünürlük | 1280*248 | Parlaklık | 300 (Tip.) |
| Çalışma sıcaklığı. | 0 ~ 50 ℃ | Aktif alan | 374,78*72,61 mm |
| Anahat boyutu | 396*100,8*12,58 mm | ||
| Vurgulamak | 15 inch bar LCD display,LVDS interface bar display,700nits brightness bar screen |
||
Ürün Açıklaması

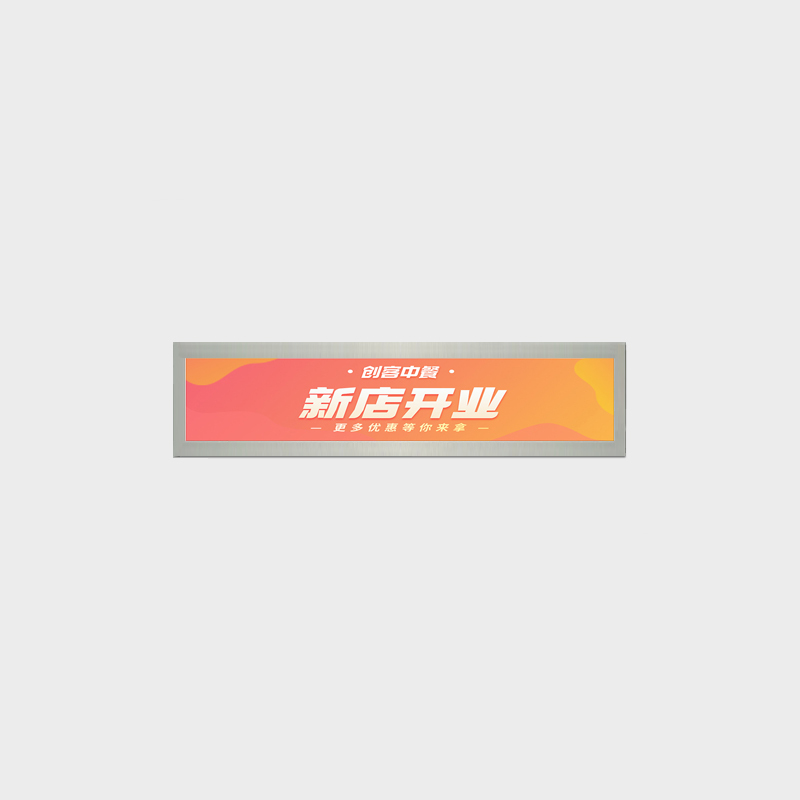

15 Inch Bar Display With 1028*204 Resolution LVDS Interface 700nits Brightness
Product Advantages
- 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
- Advanced cutting technology to ensure the yield and precision.
- High reliability with same features as original panel.
- High Anti-vibration.
- Brightness can be customized (500-2500nit).
- Long life time 50K hours(Typ), up to 80K hours.
Product Applications
- Commercial signage: Advertising and Price Shelves.
- Public transportation: Bill board for Bus/Metro and light rail.
- Guidance board, Lift advertising board.
- Financial services. Bank call notice board.
- Name card.
- Advertising board on taxi.
Specifications
LCMA-RX0150TB01-C030
| Brand | Rogin |
|---|---|
| Series | Bar Type LCD Display |
| Panel Size | 15 inch |
| Model | LCMA-RX0150TB01-C030 |
| Brightness | 300 |
| Resolution | 1280*248 |
| Active Area | 374.78*72.61mm |
| Overall Size | 396*100.8*12.58mm |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Touch Panel | Without |
| Operating Temperature | 0~50 ℃ |
