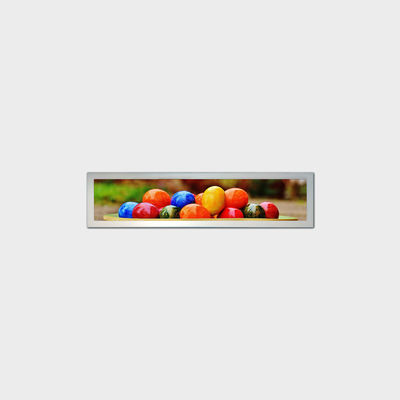

13.8 inch Bar Type Cutting Display Support Smart Home Application Touch Panel Options

  • 13.8 inch Bar Type Cutting Display Support Smart Home Application Touch Panel Options
Menşe yeri Shenzhen
Marka adı ROGIN
Model numarası LCMA-RX0138TQ01-C070
Min sipariş miktarı 5
Fiyat Price is negotiable.
Ambalaj bilgileri Kartonlar veya ahşap kasalar
Teslim süresi 6-8 hafta
Ödeme koşulları T/T, L/C
Yetenek temini SPOT Yeterliliği

Ücretsiz numuneler ve kuponlar için bana ulaşın.

Naber:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Eğer herhangi bir endişeniz varsa, 24 saat online yardım sağlıyoruz.

x
Ürün ayrıntıları
İsim Bar Tipi TFT LCD Ekran Panel boyutu 13,8"
Çözünürlük 1920*358 Parlaklık 700 (Tip.)
Çalışma sıcaklığı. 0 ~ 50 ℃ Aktif alan 344,16*61,17 mm
Anahat boyutu 371,5*90,1*12,7 mm
Vurgulamak

13.8 inch bar type LCD display

,

smart home touch panel display

,

bar type cutting display panel
Mesaj bırakın
Ürün Açıklaması
13.8 inch Bar Type Cutting Display Support Smart Home Application Touch Panel Options
Product Advantages
  • 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
  • Advanced cutting technology to ensure the yield and precision.
  • High reliability with same features as original panel.
  • High Anti-vibration.
  • Brightness can be customized (500-2500nit).
  • Long life time 50K hours(Typ), up to 80K hours.
Product Applications
  • Commercial signage: Advertising and Price Shelves.
  • Public transportation: Bill board for Bus/Metro and light rail.
  • Guidance board, Lift advertising board.
  • Financial services. Bank call notice board.
  • Name card.
  • Advertising board on taxi.
13.8 inch Bar Type Cutting Display Support Smart Home Application Touch Panel Options 0 13.8 inch Bar Type Cutting Display Support Smart Home Application Touch Panel Options 1 13.8 inch Bar Type Cutting Display Support Smart Home Application Touch Panel Options 2 13.8 inch Bar Type Cutting Display Support Smart Home Application Touch Panel Options 3
Specifications
LCMA-RX0138TQ01-C070
Brand Rogin
Series Bar Type TFT LCD Display
Panel Size 13.8 inch
Model LCMA-RX0138TQ01-C070
Brightness 700nits
Resolution 1920*358
Active Area 344.16*61.17mm
Overall Size 371.5*90.1*12.7mm
Viewing Angle 89/89/89/89
Interface Definition LVDS (2 ch, 8-bit)
Backlight Type WLED
Contrast Ratio 3000:1
Touch Panel Without
Operating Temperature 0-50 ℃
